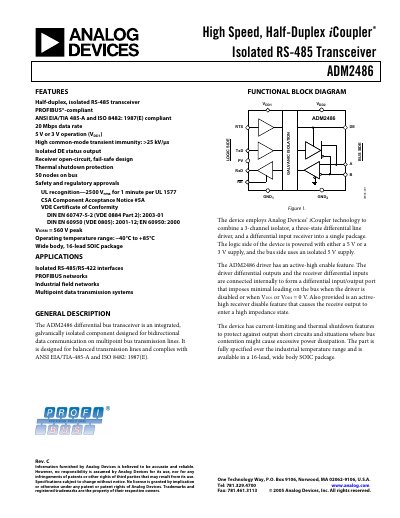

The ADM2486 Rev. C is an half-duplex isolated RS-485 transceiver manufactured by Analog Devices, which complies with ANSI EIA/TIA 485-A and ISO 8482: 1987(E) standards, supports 20 Mbps data rate, operates at 5 V or 3 V, has high common-mode transient immunity (>25 kV/μs), isolated DE status output, open-circuit fault protection, thermal shutdown protection, up to 50 nodes on bus, and has been certified by UL, CSA and VDE. It works in the temperature range of -40°C to +85°C and is packaged in a wide body 16-lead SOIC package.
The ADM2486 is an integrated, galvanically isolated differential bus transceiver designed for bidirectional data communication on multipoint transmission lines. Utilizing Analog Devices' iCoupler technology, it combines a three-channel isolator with a line driver and receiver in a single 16-lead SOIC package.
| Maximum Data Rate | 20 Mbps |
|---|---|
| Operating Temperature Range | -40°C to +85°C |
| Package Type | 16-lead SOIC |
| Common-Mode Transient Immunity | >25 kV/μs |
| Isolation Voltage (UL) | 2500 V rms for 1 minute |
The logic side (VDD1) supports either a 5 V or a 3 V operation.
The device supports a maximum data rate of 20 Mbps.
VDD1 operates between 2.7 V and 5.5 V, while VDD2 operates between 4.75 V and 5.25 V.
The device functions within an operating temperature range of −40°C to +85°C.
