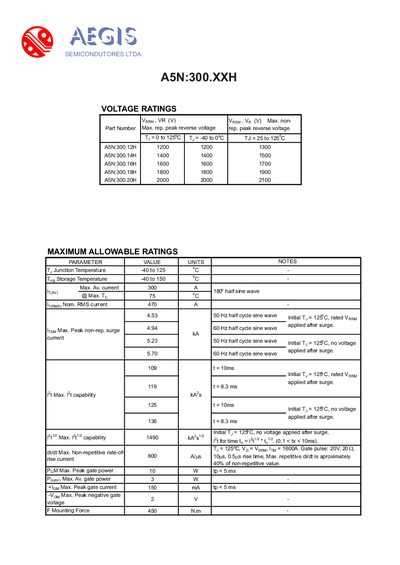

The document provides information about the voltage and power ratings of the SEMICONDUTORES LTDA. AEGIS A5N:300.XXH product.
This document is a technical datasheet for the Aegis A5N:300.XXH series of semiconductor devices. It provides maximum allowable ratings including junction temperature, storage temperature, average forward current (300A), and peak non-repetitive surge currents.
The datasheet also lists detailed electrical characteristics such as on-state voltage drop, latching current, holding current, and switching times (delay and turn-off). Thermal resistance values for various mounting conditions are provided alongside graphical representations of power loss and transient thermal impedance.
| Max. Av. current | 300 A |
|---|---|
| Nom. RMS current | 470 A |
| Max. Peak non-rep. surge current (60 Hz) | 5.70 kA |
| Latching current | 400 mA |
| Holding current | 500 mA |
| Turn-off time (tq) | 400 us |
| Peak gate current | 150 mA |
| Mounting Force | 450 N.m |
| Case Style | TO-200AA JEDEC |
The maximum allowable junction temperature (Tj) ranges from -40 to 125°C.
The typical peak on-state voltage (Vtm) is 1.93 V.
