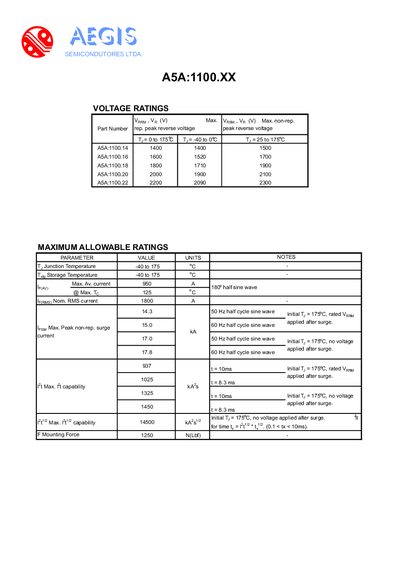

The document provides information on the maximum allowable ratings, maximum current, voltage, and other characteristics of AEGIS A5A:1100.XX product from O O O O O O O O O O O Semiconductors Ltd.
The A5A:1100.XX datasheet provides detailed electrical ratings, including voltage limits, current capabilities, and thermal performance. Key parameters such as junction temperature range, peak forward voltage, and resistance values are listed.
Graphs illustrate forward voltage drop, on‑state power loss, and transient thermal impedance, while the outline section shows the TO‑200AC package dimensions.
| Maximum Junction Temperature | -40 to 175 °C |
|---|---|
| Peak Forward Voltage (Vem) | 1.60 – 1.79 V |
| Low‑level Threshold (Fro) | 0.788 V |
| High‑level Resistance (rr2) | 0.290 Ω |
The component is rated for a junction temperature range of –40 °C to 175 °C.
The peak forward voltage (Vem) varies between 1.60 V and 1.79 V.
The low‑level threshold (Fro) is specified as 0.788 V.
