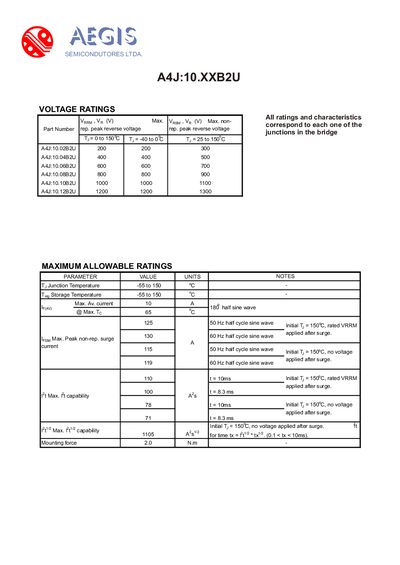

This document is about the technical parameters of AEGIS A4J:10.XXB2U, including maximum allowable voltage, peak non-repetitive surge current, average current, peak repetitive surge current, etc.
The Aegis A4J:10.XXB2U series is a family of bridge rectifiers with a range of voltage ratings from 200 V to 1200 V, depending on the specific part number. The document lists maximum allowable ratings such as junction temperature, storage temperature, average forward current, and peak non‑repetitive surge current.
Electrical characteristics include a peak forward voltage of 1.30 V, a threshold voltage of 0.85 V, and a slope resistance of 7 mΩ. Thermal performance is shown through transient thermal impedance curves and on‑state power loss graphs, while mechanical data specify a mounting force of 2.0 N·m.
| Peak forward voltage | 1.30 V |
|---|---|
| Maximum average forward current | 10 A |
| Maximum peak non‑repetitive surge current | 130 A |
| Junction temperature range | -55 to 150 °C |
| Mounting force | 2.0 N·m |
The peak forward voltage is 1.30 V.
The maximum average forward current is 10 A.
A4J:10.02B2U is rated for 200 V, A4J:10.04B2U for 400 V, A4J:10.06B2U for 600 V, A4J:10.08B2U for 800 V, A4J:10.10B2U for 1000 V, and A4J:10.12B2U for 1200 V.
The junction temperature can operate from –55 °C to +150 °C.
