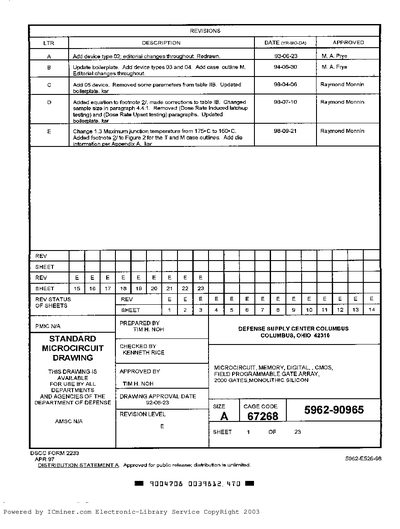

The document is a standard microcircuit drawing for the part number 5962-90965, prepared by the Defense Supply Center Columbus. It covers two product assurance class levels: high reliability (device classes Q and M) and space application (device class V). The device is a 2000 gate field programmable gate array available with different case outlines including J44, J68, J84, P85, F84, and unformed lead chip carriers.
| Circuit Function | 2000 gate, field programmable gate array |
|---|---|
| Maximum Junction Temperature | +150°C |
| Storage Temperature Range | -65C to +150°C |
| Total Dose | 300K rads (maximum) |
| Supply Voltage Range | -0.5 V de to +7.0 V de |
The document covers high reliability (device classes Q and M) and space application (device class V).
The maximum junction temperature is +150°C.
