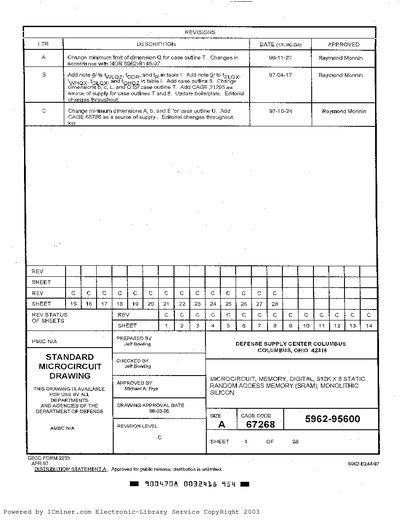

This document is a standard military microcircuit drawing for the 5962-95600, which documents high reliability and space application device classes. It specifies a 12K x 8 CMOS Static RAM with access times ranging from 20 to 45 nanoseconds depending on the specific device type selected.
The datasheet provides detailed information on Part Identifying Numbers (PIN), including Radiation Hardness Assurance levels, various case outlines such as GDIP, TSOP, and SOJ, and lead finishes. It also lists absolute maximum ratings, recommended operating conditions, and applicable government specifications like MIL-PRF-38535.
| Voltage on any input relative to Vs | -0.5 V dc to +7.0 V dc |
|---|---|
| Storage temperature range | -65*C to +150°C |
| Maximum power dissipation (Pp) | 2.0W |
| Supply voltage range (Vcc) | +4.5 V dc to+5.5V de |
| Case operating temperature range | -68°C ta +125°C |
This drawing documents high reliability (device classes Q and M) and space application (device class V).
A dash indicates a non-RHA device.
Case outline Z corresponds to a 32 leadless chip carrier.
