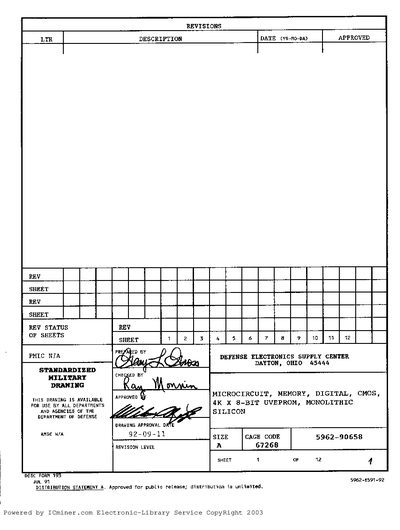

This document is a standardized military drawing describing device requirements for the part number 5962-90658. It covers class B microcircuits in accordance with MIL-STD-883 and provides detailed specifications for various access times ranging from 70 ns down to 35 ns.
| Circuit Function | 4K x 8-bit UVEPROM |
|---|---|
| Voltage Range | -0.6 V dc to +7.0 V dc |
| Operating Temperature Range | -55°C to +125°C |
| Maximum Power Dissipation | 1W |
| Supply Voltage Range | +4.5 V dc to +5.5 V dc |
The recommended procedure is exposure to shortwave ultraviolet light with a wavelength of 2537 angstroms.
The integrated dose should be a minimum of 25 Ws/cm².
