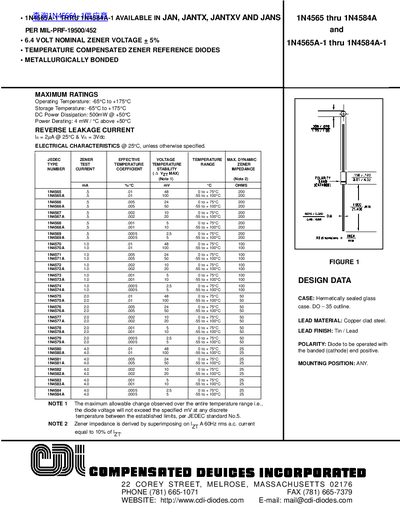

1N4565A-1 to 1N4584A-1 are available in JAN, JANTX, JANTXV and JANS per MIL-PRF-19500/452, have a nominal zener voltage of 6.4 volts +5% and are metallized bonded temperature compensated zener reference diodes.
This document provides technical specifications for a series of Zener Reference Diodes manufactured by CDI Devices Incorporated. The devices are designed as temperature compensated zener references with metallurgically bonded construction to ensure stability and reliability.
The datasheet details maximum ratings, including an operating temperature range of -65°C to +175°C and a DC power dissipation of 500mW at +50°C. It lists specific electrical characteristics for each model number in the series (e.g., Zener voltage, dynamic impedance) and includes graphical data regarding zener impedance versus operating current.
| Operating Temperature Range | -65°C to +175°C |
|---|---|
| Storage Temperature Range | -65°C to +175°C |
| DC Power Dissipation | 500mW @ +50°C |
| Power Derating | 4 mW / °C above +50°C |
| Construction Type | Metallurgically Bonded |
The mounting position can be any orientation.
The maximum DC power dissipation is 500mW when the temperature is +50°C.
The operating temperature range is -65°C to +175°C, and the storage temperature range is also -65°C to +175°C.
These diodes can be mounted in any position.
