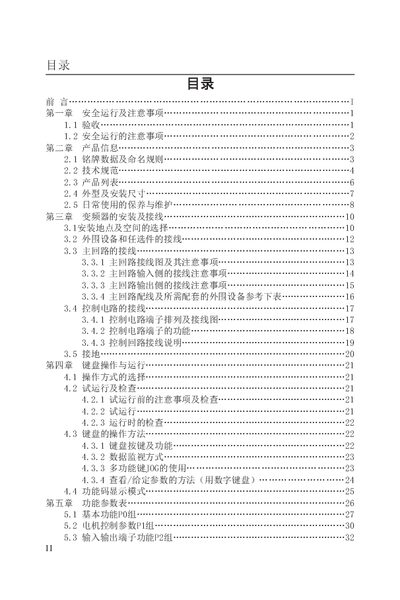

CDI EM60 Inverter User Manual

About this manual

This manual covers safe operation and precautions for the CDI EM60 series inverter, including acceptance checks, hazard warnings, and required protective measures before power‑up. It also details product information such as name‑plate data, technical specifications, dimensions and routine maintenance.

The document explains installation and wiring procedures for the main and control circuits, keyboard operation, parameter settings, common functions, RS‑485 communication, and a comprehensive troubleshooting guide. Appendices list optional accessories, expansion cards and selection guidelines. This manual is written in Chinese.

What's inside

• Safety Operation and Precautions
• Product Information
• Installation and Wiring
• Keyboard Operation and Running
• Function Parameter Table
• Parameter Description
• Common Functions and Application Cases
• RS‑485 Communication
• Troubleshooting
• Appendices

Specifications

Frequently asked questions

What safety precaution must be taken before performing maintenance?

The inverter must be powered off for at least 10 minutes so that the charge‑indicating light is off and bus voltage is below 36 V before any maintenance work.

Which communication protocol does the EM60 support?

When equipped with the RS‑485 communication expansion card, the EM60 supports the standard MODBUS‑RTU protocol.

Where can I find the main circuit wiring diagram?

The main circuit wiring diagram and its precautions are provided in Chapter 3, titled “主回路接线图及其注意事项”.
