The document describes Zener diode chips with 23 MILS and 15 MILS, which are electrically equivalent to 1N4678 through 1N4717. They have a 0.5-watt capability and are compatible with all wire bonding and die attach techniques.

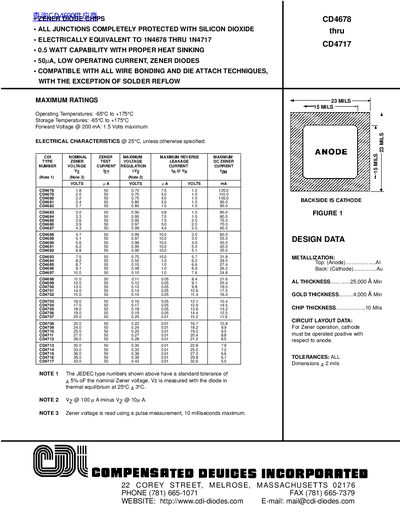

This document provides technical specifications for the CDI Zener Diode Series ranging from part numbers CD4678 to CD4717. The devices are described as having all junctions completely protected with silicon dioxide and an electrically equivalent rating to 1N4678 through 1N4717.
| Power Capability | 0.5 WATT CAPABILITY WITH PROPER HEAT SINKING |
|---|---|
| Operating Temperature Range | -65°C to +175°C |
| Storage Temperature Range | -65°C to +175°C |
| Forward Voltage (at 200 mA) | 1.5 volts maximum |
The maximum operating temperature is +175°C.
The maximum forward voltage is 1.5 volts.
The diodes have a 0.5 watt capability with proper heat sinking.
