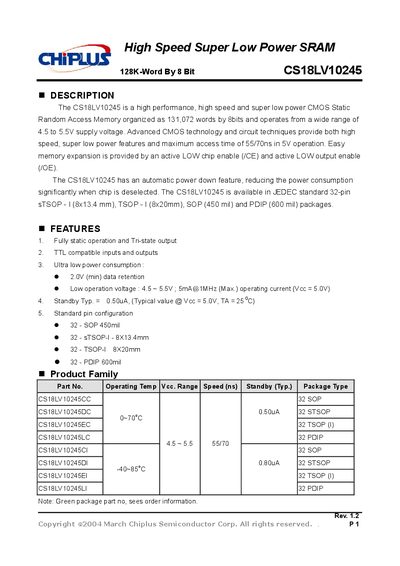

The CS18LV10245 is a high performance, high speed and super low power CMOS Static Random Access Memory organized as 131,072 words by 8bits and operates from a wide range of 4.5 to 5.5V supply voltage.
The CS18LV10245 is a high performance, high speed and super low power CMOS Static Random Access Memory organized as 131,072 words by 8 bits. It operates from a wide range of 4.5 to 5.5V supply voltage with maximum access times of 55/70ns in 5V operation.
The device features fully static operation, TTL compatible inputs and outputs, and ultra low power consumption with a standby current typical value of 0.50uA at Vcc = 5.0V. It includes an automatic power down feature to reduce power consumption when the chip is deselected.
| Organization | 131,072 words by 8 bits |
|---|---|
| Operating Voltage Range | 4.5V ~ 5.5V |
| Max Access Time (5V) | 55/70ns |
| Operating Current (Max) | 5mA @ 1MHz |
| Standby Current (Typical) | 0.50uA |
| Operating Temperature Range | -40°C to +85°C (Industrial) |
The maximum access time is 70ns in 5V operation.
The device is available in SOP, TSOP-I, and PDIP packages.
Yes, it has an automatic power down feature that significantly reduces power consumption when the chip is deselected.
