CHIPLUS High Speed Super Low Power SRAM 256K-Word By 8 Bit CS18LV20483 handbook

The CS18LV20483 is a high performance, high speed, and super low power CMOS Static Random Access Memory organized as 262,144 words by 8 bits and operates from a wide range of 2.7 to 3.6V supply voltage. Advanced CMOS technology and circuit techniques provide both high speed and low power features with a typical CMOS standby current of 0.50uA and maximum access time of 55/70ns in 3.0V operation. Easy memory expansion is provided by an active LOW chip enable inputs (/CE1,CE2) and active LOW output enable (/OE) and three-state output drivers. The CS18LV20483 has an automatic power down feature, reducing the power consumption significantly when chip is deselected. The CS18LV20483 is available in JEDEC standard 32-pin sTSOP (8x13.4 mm), TSOP (8x20mm), TSOP (II) (400mil) and SOP (450 mil) packages.

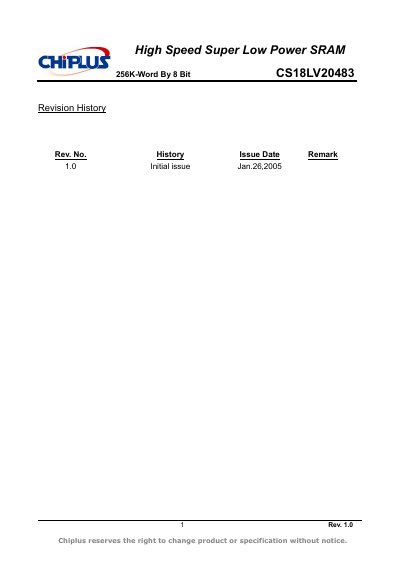

CHIPLUS High Speed Super Low Power SRAM 256K-Word By 8 Bit CS18LV20483 handbook - cover page
Brand
CHiPLUS
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
12
File format
PDF
File size
758 KB
Published
07 May, 2012
Updated
30 September, 2023
MD5 checksum
1AE96E32115737BC5EB4778EF59E9255

About this manual

The CS18LV20483 is a high‑performance static random‑access memory organized as 262,144 words × 8 bits. It operates over a wide supply range of 2.7 V to 3.6 V and features ultra‑low standby current and fast access times, making it suitable for power‑sensitive applications.

Key features include active‑low chip‑enable and output‑enable inputs, three‑state TTL‑compatible outputs, automatic power‑down when deselected, and data‑retention capability down to 1.5 V. The device is offered in several JEDEC‑standard 32‑pin packages such as sTSOP, TSOP, TSOP (II) and SOP.

What's inside

  • General Description
  • Features
  • Pin Configurations
  • Absolute Maximum Ratings
  • Operating Range
  • DC Electrical Characteristics
  • Data Retention Characteristics
  • Package Types
  • AC Test Conditions
  • Order Information

Specifications

Supply Voltage Range2.7 V – 3.6 V
Typical Standby Current0.50 µA
Maximum Access Time55 ns (typ) / 70 ns (max) at 3.0 V
Available Packages32‑pin sTSOP, TSOP, TSOP (II), SOP
Data Retention Supply Voltage1.5 V
Industrial Operating Temperature-40 °C to 85 °C

Frequently asked questions

What supply voltage does the CS18LV20483 support?

It operates from 2.7 V up to 3.6 V.

What is the typical standby current of the device?

The typical standby (CMOS) current is 0.50 µA.

Which package types are offered for the CS18LV20483?

It is available in 32‑pin sTSOP, TSOP, TSOP (II) and SOP packages.

What is the maximum read access time?

The maximum read access time is 55 ns to 70 ns at a 3.0 V supply.
