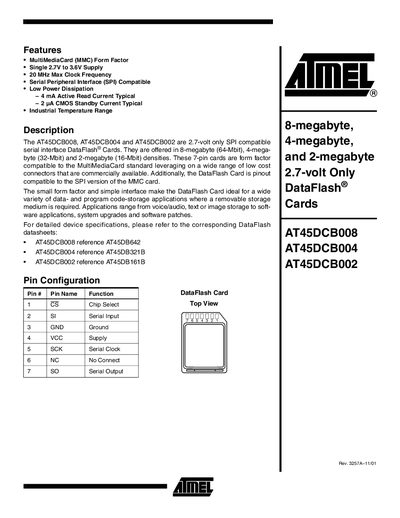

AT45DCB008, AT45DCB004 and AT45DCB002 are 2.7-volt only SPI compatible serial interface DataFlash® Cards. They are offered in 8-megabyte (64-Mbit), 4-mega- byte (32-Mbit) and 2-megabyte (16-Mbit) densities. These 7-pin cards are form factor compatible to the MultiMediaCard standard leveraging on a wide range of low cost connectors that are commercially available. Additionally, the DataFlash Card is pinout compatible to the SPI version of the MMC card. The small form factor and simple interface make the DataFlash Card ideal for a wide variety of data- and program code-storage applications where a removable storage medium is required. Applications range from voice/audio, text or image storage to soft- ware applications, system upgrades and software patches. For detailed device specifications, please refer to the corresponding DataFlash datasheets: • AT45DCB008 reference AT45DB642 • AT45DCB004 reference AT45DB321B • AT45DCB002 reference AT45DB161B
The document describes the Atmel AT45DCB008, a serial interface DataFlash Card with an 8-megabyte capacity. It is designed for MultiMediaCard (MMC) form factor applications and operates on a single 2.7V to 3.6V supply.
| Capacity | 8-megabyte (64-Mbit) |
|---|---|
| Supply Voltage | 2.7V to 3.6V |
| Max Clock Frequency | 20 MHz |
| Active Read Current | 4mA Typical |
| Standby Current | 2 pA CMOS Typical |
