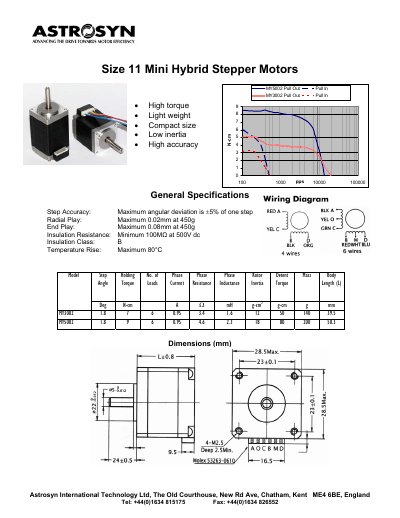

This PDF file is a specification table of Astrosyn MY3002 and MY5002 mini hybrid stepper motors, including step angle, holding torque, lead number, phase current, phase resistance, phase inductance, rotor inertia, detent torque, mass, body length, etc.
This datasheet provides technical specifications for several models of Astrosyn mini hybrid stepper motors. The document covers both Size 11 (MY3002, MY5002) and Size 14 variants (MY4001, MY5602, MY5401, MY7001), detailing their electrical and mechanical properties.
| Insulation Resistance | Minimum 100M Ω at 500V d c |
|---|---|
| Insulation Class | B |
| Temperature Rise | Maximum 80°C |
The maximum angular deviation is ±5% of one step.
The maximum radial play is 0.02mm at 450g, and the maximum end play is 0.08mm at 450g.
