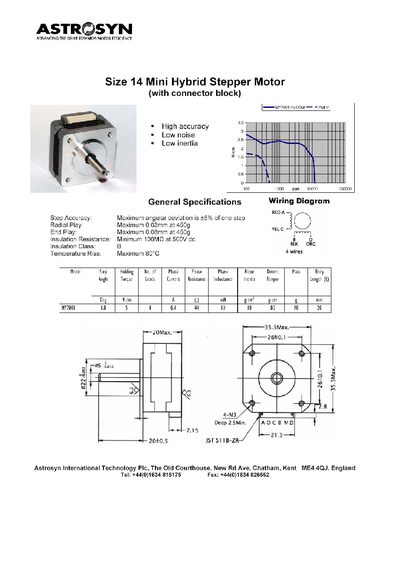

This document is a product leaflet for the Astrosyn MY7001 Size 14 Mini Hybrid Stepper Motor. Key features highlighted include high accuracy with a maximum angular deviation of +5% per step, low noise operation, and low inertia.
The motor comes with a connector block (JST $11B-ZR) and has an insulation class of B. It is designed for applications requiring precise motion control within the specified physical dimensions.
| Step Angle | 18 Deg |
|---|---|
| Holding Torque | 35.3 Max N-cm |
| Number of Phases | 4 |
| Phase Current | 1.0 A |
| Phase Resistance | 10 Ohm |
| Phase Inductance | 80 uH |
| Rotor Inertia | 90 g-cm^2 |
| Body Length | 35.3 Max mm |
| Insulation Resistance | Minimum 100MQ at 500V dc |
| Temperature Rise | Maximum 80°C (4 wires) |
The step accuracy has a maximum angular deviation of +5% of one step.
The motor uses a JST $11B-ZR connector.
