The P403 is a high performance microstepping driver based on the most advanced technology in the world today. It is suitable for driving any 2-phase and 4-phase hybrid step motors (current 3.5A). By using advanced bipolar constant-current chopping techniques, it can output more speed and power from the same motor, compared with traditional technologies such as L/R drivers. It has patented current control technology, which allows coil currents to be accurately controlled, generating much less current ripple and motor heating than other drivers on the market.
File format: PDF
Size: -
MD5 Checksum: 7D3424E38634BEC47199C2B88B1EB6F6
Publication date: 05 June, 2012
Downloads: -

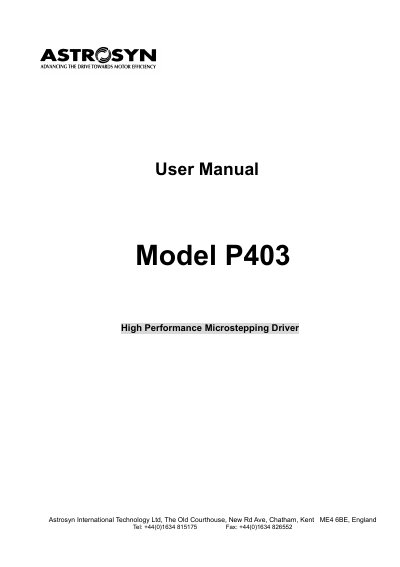

PDF Link: ASTROSYN Model P403 High Performance Microstepping Driver User Manual PDF
