HA-2505 12MHz, High Input Impedance, Operational Amplifier is an operational amplifier produced by AD company, with excellent slew rate, bandwidth and settling time
The HA-2505 is a dielectrically isolated operational amplifier optimized for high slew rate, fast settling time, and wide bandwidth. It offers low offset voltage (2 mV typical) and low offset current (10 nA), making it suitable for data‑acquisition, RF, video, and pulse‑conditioning circuits.

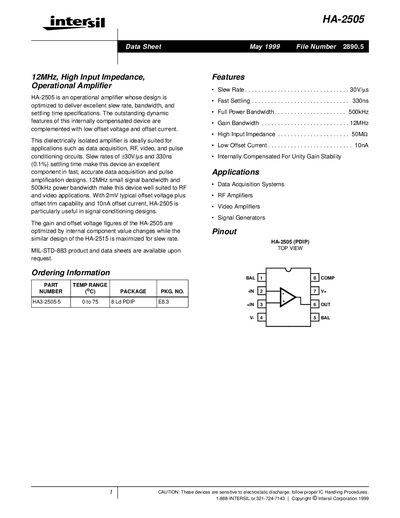

The datasheet details absolute maximum ratings, thermal characteristics, electrical specifications, and typical performance curves. It also includes package information (PDIP), ordering numbers, and test circuit diagrams for designers.
| Settling Time (0.1%) | 330 ns |
|---|---|
| Input Offset Voltage (typical) | 2 mV |
| Supply Voltage Range (absolute max) | 40 V between V+ and V- |
The device can tolerate up to 40 V between the V+ and V‑ terminals.
It is available in a Dual‑in‑Line Plastic (PDIP) package.
Typical input offset voltage is 2 mV.
