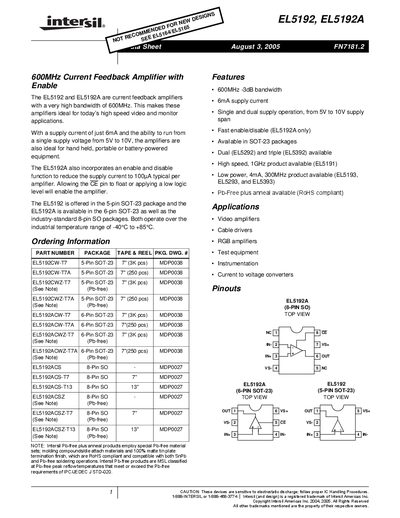

The EL5192 and EL5192A are current feedback amplifiers with a very high bandwidth of 600MHz. This makes these amplifiers ideal for today’s high speed video and monitor applications. With a supply current of just 6mA and the ability to run from a single supply voltage from 5V to 10V, the amplifiers are also ideal for hand held, portable or battery-powered equipment. The EL5192A also incorporates an enable and disable function to reduce the supply current to 100µA typical per amplifier. Allowing the CE pin to float or applying a low logic level will enable the amplifier. The EL5192 is offered in the 5-pin SOT-23 package and the EL5192A is available in the 6-pin SOT-23 as well as the industry-standard 8-pin SO packages. Both operate over the industrial temperature range of -40°C to +85°C.
The EL5192 and EL5192A are 600 MHz current‑feedback amplifiers designed for high‑speed video and monitor applications. They operate from a single or dual supply of 5 V to 10 V and draw only 6 mA, making them suitable for portable or battery‑powered equipment. The EL5192A adds an enable/disable pin that reduces supply current to about 100 µA when disabled.
Both devices are offered in compact SOT‑23 packages (5‑pin for EL5192, 6‑pin and 8‑pin SO for EL5192A) and are rated for an industrial temperature range of –40 °C to +85 °C. The datasheet includes detailed electrical specifications, performance curves, and typical application circuits such as inverting amplifiers and differential line drivers.
| Bandwidth (-3 dB) | 600 MHz |
|---|---|
| Supply Current (enabled) | 6 mA |
| Supply Voltage Range | 5 V to 10 V |
| Enable/Disable Current (EL5192A) | ≈100 µA |
| Operating Temperature Range | -40 °C to +85 °C |
The EL5192 has a -3 dB bandwidth of 600 MHz.
It can operate from a single or dual supply voltage of 5 V to 10 V.
Yes, the EL5192A includes an enable/disable pin that reduces supply current to about 100 µA when disabled.
