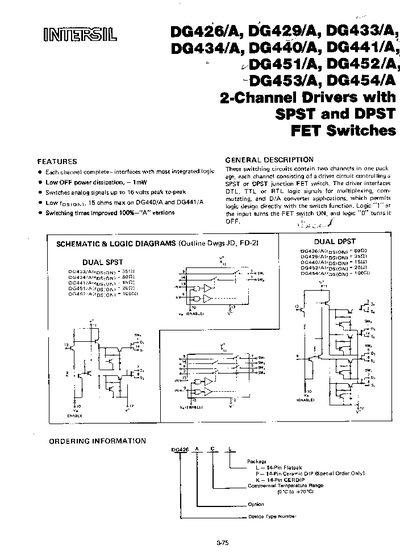

This document is a technical datasheet for the Intersil DG426/A family of 2-Channel Drivers with SPST and DPST FET Switches. The devices interface with DTL, TTL, or RTL logic signals to control junction FET switches for multiplexing, commutating, and A/D converter applications.
The datasheet provides absolute maximum ratings, electrical characteristics per channel (including input voltages, leakage currents, on-resistance, and drive power), and switching times. It also includes typical characteristic curves showing performance versus temperature.
| Low OFF power dissipation | < 1mW |
|---|---|
| Switching analog signals up to | 16 volts peak-to-peak |
| On Resistance (DG440/A and DG441/A) | 15 ohms max |
| Operating Temperature Range | -65 to +150°C |
| Total Supply Voltage (Vt-V7) | 32V |
| Power Dissipation | 750mW |
The driver interfaces DTL, TTL or RTL logic signals.
Logic '1' at the input turns the FET switch ON, and logic '0' turns it OFF.
The maximum on-resistance is 15 ohms.
