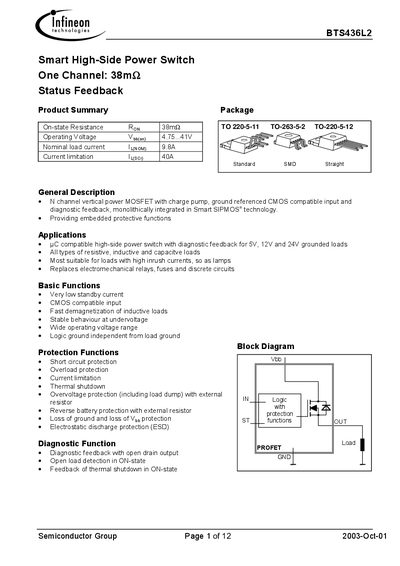

This document describes a smart high-side power switch product with features such as low standby current, short circuit protection, and overload protection. It is suitable for microcontroller-compatible high-side power switches for 5V, 12V, and 24V grounded loads.
The Infineon Technologies BTS436L2 is an N-channel vertical power MOSFET integrated with a charge pump and ground-referenced CMOS input. It functions as a smart high-side power switch designed for microcontroller-compatible applications, supporting loads of 5V, 12V, and 24V.
| Operating Voltage Range | 4.75 V to 41 V |
|---|---|
| Nominal Load Current | 9.8 A |
| Current Limitation | 40 A |
| Operating Temperature Range | -40°C to +150°C |
The maximum supply voltage for full short circuit protection is 24 V.
Yes, it provides diagnostic feedback with an open drain output to detect open loads and thermal shutdown.
