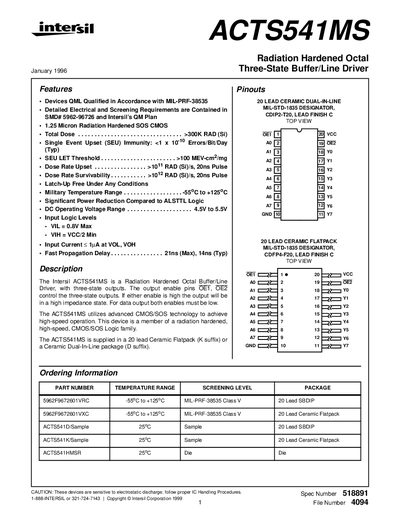

This document describes the pinouts, features, and characteristics of the ACTS541MS radiation hardened octal three-state buffer/line driver. The product is QML qualified and complies with MIL-PRF-38535. It is manufactured using a 1.25-micron radiation hardened SOS CMOS process and exhibits high radiation tolerance and single event upset immunity. The device is latch-up free under any conditions and operates within the military temperature range. It offers significant power reduction compared to ALSTTL logic.
The ACTS541MS is a radiation‑hardened octal three‑state buffer/line driver offered in 20‑lead ceramic dual‑in‑line (CDIP) and flat‑pack packages. It features low power consumption, fast propagation delay, and high immunity to single‑event upsets.
The document provides pinouts, functional diagrams, truth tables, ordering information, and detailed die characteristics, along with electrical specifications such as voltage range, temperature limits, and radiation tolerance.
| Propagation Delay (Typ) | 14 ns |
|---|---|
| Package (Flatpack) | 20‑lead Ceramic Flatpack |
Typical propagation delay is 14 ns.
