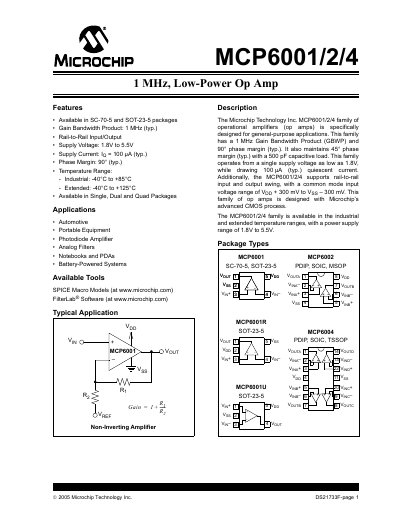

This datasheet introduces the features of the Microchip MCP6001/2/4 family of operational amplifiers, including package types, gain bandwidth product, supply voltage, supply current, phase margin, temperature range, application scenarios, and available tools.
The MCP6001/2/4 family is a 1 MHz, low‑power operational amplifier series offered in single, dual, and quad packages. It features rail‑to‑rail input/output, a supply voltage range of 1.8 V to 5.5 V, and a typical quiescent current of 100 µA per amplifier, making it suitable for battery‑powered and portable equipment.
The document lists detailed electrical characteristics such as gain‑bandwidth product, phase margin, input offset voltage, bias current, and noise performance, as well as pin‑out tables, package options, temperature ranges, and typical application circuits. It also includes performance curves and guidelines for driving capacitive loads.
| Gain Bandwidth Product | 1 MHz (typ.) |
|---|---|
| Phase Margin | 90° (typ.) |
| Supply Voltage | 1.8 V to 5.5 V |
| Supply Current (Quiescent) | 100 µA (typ.) |
| Input Offset Voltage | -4.5 mV to +4.5 mV |
| Input Bias Current | 1.0 pA (typ.) |
| Input Noise Voltage | 6.1 nV/√Hz (0.1 Hz‑10 Hz) |
| Industrial Temperature Range | -40 °C to +85 °C |
| Extended Temperature Range | -40 °C to +125 °C |
| Output Short‑Circuit Current | 6 mA (typ.) |
The MCP6001/2/4 operates from a single supply voltage of 1.8 V to 5.5 V.
Each amplifier draws about 100 µA of supply current under typical conditions.
The family has a typical gain‑bandwidth product of 1 MHz.
