This document describes the features and characteristics of Microchip Technology Inc.'s PIC16C62X series products, including high-performance RISC CPU, interrupt capability, hardware registers, hardware stack, peripheral features, and special microcontroller features.

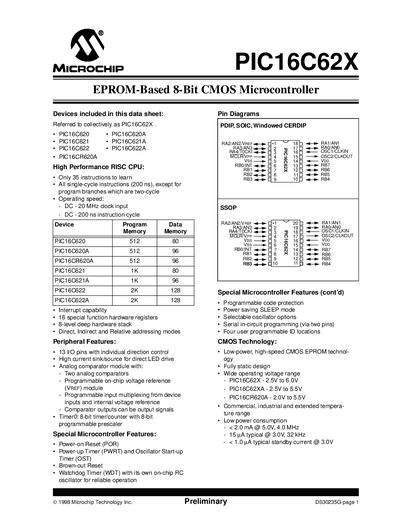

This document describes the PIC16C62X family of 18 and 20-pin ROM/EPROM-based microcontrollers. These devices utilize an advanced RISC architecture with a total of 35 instructions, allowing most operations to execute in a single cycle. The family includes variants such as the PIC16C620, PIC16C621, and PIC16C622, offering different program memory sizes ranging from 512 to 2K words.
| Maximum Frequency of Operation | 20 MHz |
|---|---|
| Instruction Cycle Time | 200 ns |
| Operating Voltage Range (Standard) | 2.5V to 6.0V |
| Number of Instructions | 35 |
| Data Memory (PIC16C620) | 80 bytes |
| Data Memory (PIC16C622) | 128 bytes |
The device supports a DC to 20 MHz clock input, resulting in a 200 ns instruction cycle.
The microcontroller features 13 I/O pins with individual direction control.
The device includes two analog comparators and a programmable on-chip voltage reference module.
