BD6722FS is a single-phase full-bridge motor driver produced by Toshiba, which features speed control, current limiting, PWM soft switching drive and so on.

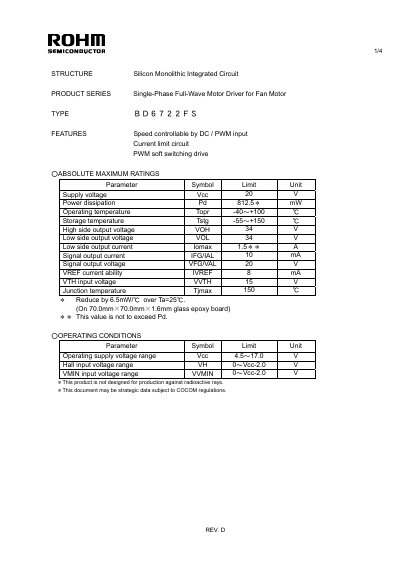

The BD6722FS8S is a single‑phase full‑wave motor driver for fan motors. It offers speed control via DC/PWM input, a current‑limit circuit and PWM soft‑switching drive. The document provides absolute maximum ratings, operating conditions, electrical characteristics, package outlines, block diagram and terminal definitions.
Key specifications include a supply voltage up to 20 V, power dissipation of 812.5 mW, operating temperature range –40 °C to +100 °C, and high‑side/low‑side output voltages of 34 V. The handbook also lists important cautions such as avoiding reverse polarity, providing protection against back‑EMF, and ensuring proper thermal design.
| Supply voltage (Vec) max | 20 V |
|---|---|
| Power dissipation (Pd) | 812.5 mW |
| Operating temperature (Topr) | -40 °C ~ +100 °C |
| High‑side output voltage (VOH) | 34 V |
| Low‑side output voltage (VOL) | 34 V |
| Low‑side output current (I_LOMAX) | 1.5 A |
| VREF current ability (IVREF) | 8 mA |
| VTH input voltage | 15 V |
| Junction temperature max (Tjmax) | 150 °C |
The device operates with a supply voltage from 4.5 V to 17.0 V.
The maximum power dissipation is 812.5 mW.
The thermal shutdown circuit activates at about 175 °C (typ.) with a 25 °C hysteresis.
