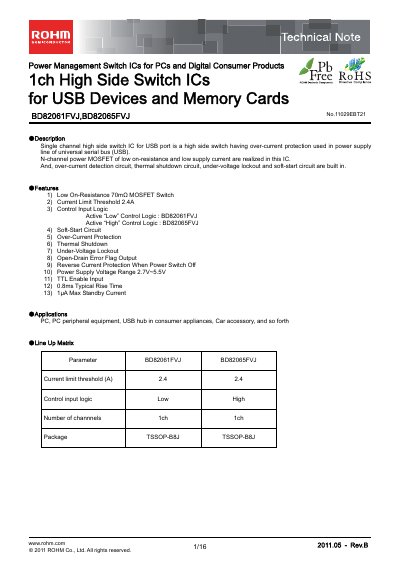

BD82061FVJ,BD82065FVJ is a high side switch IC for USB port, with over-current protection, soft-start, under-voltage lockout function.
The ROHM BD82061FVJ and BD82065FVJ are single‑channel high‑side switch ICs designed for USB ports in PCs, consumer appliances, and automotive accessories. They integrate a low‑on‑resistance MOSFET, over‑current protection, thermal shutdown, under‑voltage lockout, and a soft‑start circuit.
Key specifications include a 70 mΩ on‑resistance, 2.4 A current‑limit threshold, 2.7 V‑5.5 V supply range, and operation from –40 °C to 85 °C. The devices are supplied in a TSSOP‑B8J package and feature active‑low (BD82061FVJ) or active‑high (BD82065FVJ) control logic.
| On‑Resistance (RON) | 70 mΩ |
|---|---|
| Current limit threshold | 2.4 A |
| Supply voltage range | 2.7 V ~ 5.5 V |
| Package | TSSOP‑B8J |
| Standby current (IsTB) | 0.01 µA (typical) |
The BD82061FVJ uses active‑low control logic.
The BD82065FVJ uses active‑high control logic.
The typical rise time is 0.8 ms.
The device operates from –40 °C to 85 °C.
