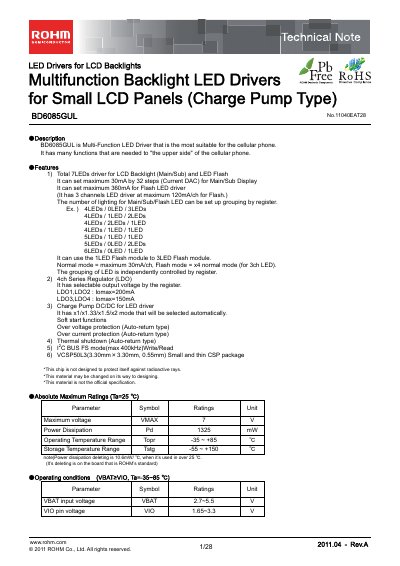

This document is the datasheet of BD6085GUL, introducing the features and characteristics of the product.
The BD6085GUL is a multifunction LED driver designed for LCD backlights and flash LEDs in small devices such as cellular phones. It integrates up to seven LED channels, four LDO regulators, and a charge‑pump DC/DC converter in a compact 3.30 mm × 3.30 mm CSP package.
Key features include selectable output voltages, programmable LED currents (up to 30 mA per backlight channel and 360 mA total flash current), thermal shutdown, over‑voltage and over‑current protection, and a 400 kHz PC‑bus interface. Detailed electrical characteristics, pin assignments, and example application circuits are provided.
| Maximum voltage (VMAX) | 7 V |
|---|---|
| Power dissipation (Pd) | 1325 mW |
| Maximum flash LED current | 360 mA total (120 mA per channel) |
| Package size | 3.30 mm × 3.30 mm |
The device can drive up to 360 mA total flash current (120 mA per channel).
It is supplied in a VCSPS5OL3 CSP package measuring 3.30 mm × 3.30 mm.
