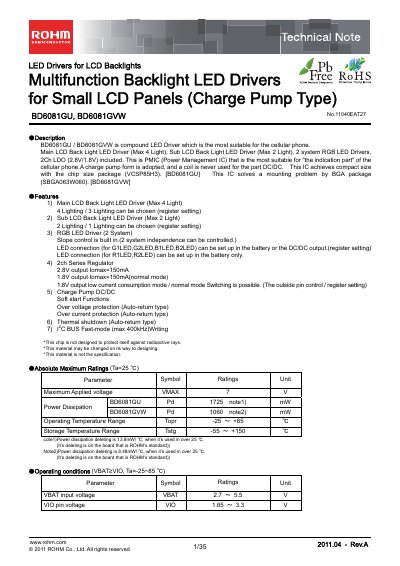

This datasheet mainly introduces the features, functions and applications of the two LED drivers BD6081GU and BD6081GVW.
The ROHM BD6081GU and BD6081GVW are multifunction LED drivers designed for small LCD panels and cellular phones. The document provides a description, features, absolute maximum ratings, operating conditions, electrical characteristics, package details, pin arrangement, and application examples.
Key information includes voltage and current limits, temperature ranges, pin functions, and ordering details. The note also contains a legal notice and contact information for ROHM.
| Maximum Applied Voltage | 7 V |
|---|---|
| 2.8 V Regulator Output Current (max) | 150 mA |
| 1.8 V Regulator Output Current (max) | 150 mA |
| Operating Temperature Range | -25 °C to +85 °C |
| Storage Temperature Range | -55 °C to +150 °C |
The maximum applied voltage is 7 V.
The regulator provides a 2.8 V output (max 150 mA) and a 1.8 V output (max 150 mA).
