BD6095GUL/BD6095GU is an Intelligent LED Driver that is the most suitable for the cellular phone. It has many functions that are needed to the upper side of the cellular phone, including ALC function, Contents Adaptive Interface, and very thin CSP package.
The BD6095GUL is an intelligent LED driver designed for small LCD backlights, especially in cellular phones. It integrates functions such as Auto Luminous Control (ALC), external PWM control, and a charge‑pump DC/DC converter in a thin CSP package.

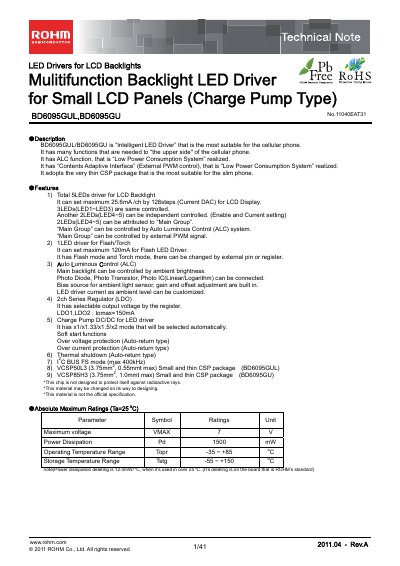

The document provides absolute maximum ratings, operating conditions, detailed electrical characteristics, pin layout, package dimensions, and ordering information for both the BD6095GUL and its variant BD6095GU.
| Maximum voltage (VMAX) | 7 V |
|---|---|
| Power dissipation | 1500 mW |
| Operating temperature range | -35 °C to +85 °C |
| Storage temperature range | -55 °C to +150 °C |
| VBAT input voltage range | 2.7 V to 5.5 V |
| VIO pin voltage range | 1.65 V to 3.3 V |
| Maximum LED current per channel | 25.6 mA |
| Maximum flash LED current | 120 mA |
The maximum voltage rating (VMAX) is 7 V.
It operates from –35 °C up to +85 °C.
VBAT should be between 2.7 V and 5.5 V.
Each channel can be set up to 25.6 mA in 128 steps.
