LM358/324, LM2904/2902 series are universal standard operational amplifiers produced by ROHM, which integrate two independent op-amps and phase compensation capacitors on a single chip and feature high-gain, low power consumption, and an operating voltage range of 3[V] to 32[V] (single power supply).

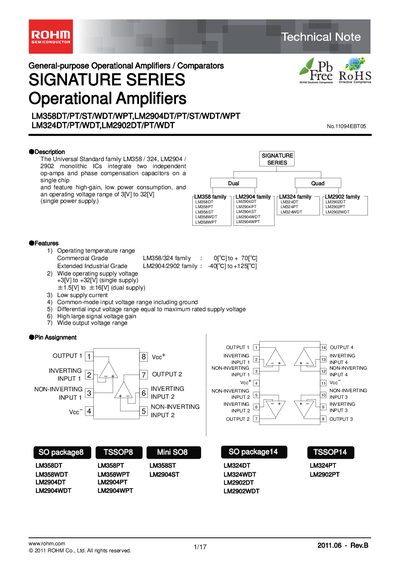

The ROHM LM358WPT Technical Note presents detailed electrical parameters, absolute maximum ratings, and reference data for the LM358 series operational amplifiers. It includes pin assignments, derating curves, and typical application circuits.
The document is intended for designers and engineers who need to integrate the LM358WPT into audio‑visual, office‑automation, communication, or other general‑purpose electronic equipment. It also contains tape‑and‑reel packaging information for mass production.
| Supply Voltage Range | 3 V to 32 V |
|---|---|
| Input Common‑mode Voltage Range | -0.3 V to +32 V |
| Typical Supply Current | 0.7 mA (typical at 5 V) |
| Large Signal Voltage Gain | 25 dB to 100 dB |
The LM358WPT operates from a single supply voltage of 3 V up to 32 V.
Typical supply current is about 0.7 mA at a 5 V supply.
The input common‑mode voltage spans from –0.3 V to +32 V.
