BA3472,BA3472R,BA3474,BA3474R are high-performance, high-voltage operational amplifiers with wide input voltage range and high output drive capability.

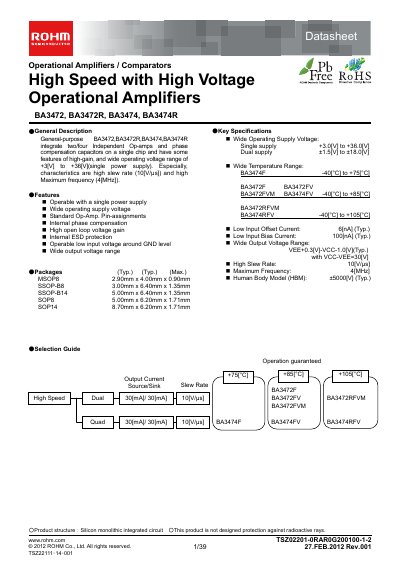

The BA3474RFV is a high‑speed, high‑voltage operational amplifier from ROHM, offering a wide supply range, high slew rate, and robust ESD protection. It is available in several package types such as MSOP8, SSOP‑B8, SSOP‑B14, SOP8, and SOP14.
The document lists key specifications including supply voltage, input offset characteristics, slew rate, and maximum frequency, as well as pin‑out diagrams, ordering information, absolute maximum ratings, and detailed electrical characteristics. It also contains design and mounting precautions for reliable use in various electronic equipment.
| Supply Voltage (VCC‑VEE) | +36 V |
|---|---|
| Input Offset Current (Typ.) | 6 nA |
| Input Bias Current (Typ.) | 100 nA |
| Slew Rate | 10 V/µs |
| Maximum Frequency | 4 MHz |
The device can be powered with a supply voltage up to +36 V (VCC‑VEE).
The typical input offset current is 6 nA.
The maximum frequency is 4 MHz.
