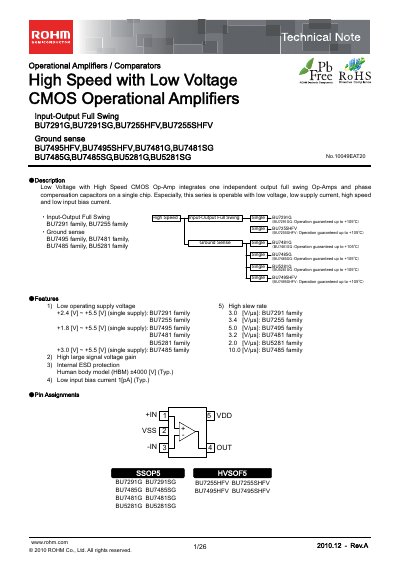

Low Voltage with High Speed CMOS Op-Amp integrates one independent output full swing Op-Amps and phase compensation capacitors on a single chip. Especially, this series is operable with low voltage, low supply current, high speed and low input bias current.
The BU7495SHFV is a low‑voltage, high‑speed CMOS operational amplifier featuring a single‑supply range of 1.8 V to 5.5 V and full‑swing output. It includes internal ESD protection, low input bias current, and a high slew rate.
The document provides absolute maximum ratings, electrical characteristics, reference data, ordering information, and legal notices for the BU7495SHFV and related BU7495 family devices.
| Supply Voltage (absolute max) | +7 V |
|---|---|
| Supply Voltage (operating) | 1.8 V ~ 5.5 V (single supply) |
| Input Offset Voltage (typical) | 1.6 mV |
| Input Bias Current (typical) | 1 pA |
| Output Source Current (typical) | 4.7 mA |
| Output Sink Current (typical) | 9 mA |
| Slew Rate (typical) | 5.0 V/µs |
| Gain‑Bandwidth Product (typical) | 4 MHz |
| Total Harmonic Distortion (typical) | 0.03 % |
| Operating Temperature Range | -40 °C ~ +85 °C |
The BU7495SHFV operates from –40 °C to +85 °C.
It works with a single supply of 1.8 V to 5.5 V.
The typical input bias current is 1 pA.
The typical slew rate is 5.0 V/µs.
