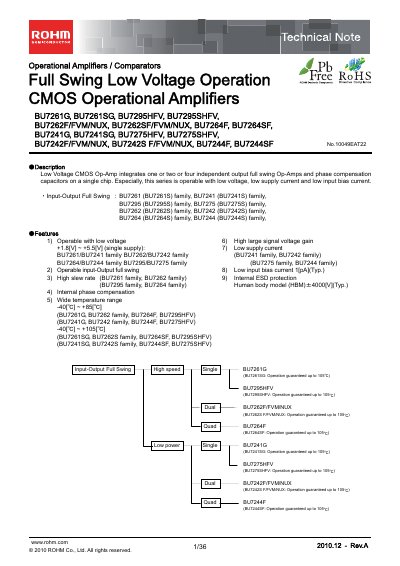

This document is about the characteristics of BU7261G, BU7261SG, BU7295HFV, BU7295SHFV, BU7262F/FVM/NUX, BU7262SF/FVM/NUX, BU7264F, BU7264SF, BU7241G, BU7241SG, BU7275HFV, BU7275SHFV, BU7242F/FVM/NUX, BU7242S F/FVM/NUX, BU7244F, BU7244SF.
The BU7264SF belongs to ROHM's low‑voltage CMOS operational amplifier family, offering full‑swing output, low supply current, and low input bias current. The note provides a description of the device, its features, and typical application circuits.
Key data include pin assignments for various package types, absolute maximum ratings, and detailed electrical characteristics such as supply voltage, offset voltage, gain, and temperature range. Tape‑and‑reel packaging details are also listed.
| Supply Voltage (VDD‑VSS) | +7 V |
|---|---|
| Input Offset Current (Typ.) | 1 pA |
| Input Bias Current (Typ.) | 1 pA |
| High Level Output Voltage (VOH) | VDD‑0.1 V |
| Low Level Output Voltage (VOL) | VSS+0.1 V |
| Large Signal Voltage Gain (AV, Typ.) | 70 dB |
The typical input bias current is 1 pA.
The device is specified for a supply voltage of +7 V (VDD‑VSS).
The BU7264SF is offered in MSOP8, VSON008X2030, and other small‑outline packages.
