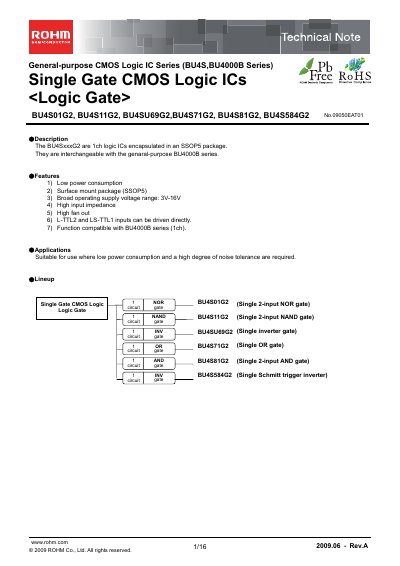

BU4S01G2,BU4S11G2,BU4SU69G2,BU4S71G2,BU4S81G2, BU4S584G2 is a single-gate CMOS logic IC produced by ROHM. It is packaged in SSOP5 and has a power supply voltage range of 3V-16V. It features low power consumption, high input impedance, high fan-out, and is compatible with BU4000B series (1ch). It is suitable for use in applications that require low power consumption and high noise tolerance.
The BU4SU69G2 is part of ROHM's general‑purpose CMOS logic IC series (BU4S, BU4000B). It is a single‑gate inverter offered in an SSOP5 surface‑mount package and is interchangeable with the BU4000B series. The device is intended for low‑power, noise‑tolerant applications such as audio‑visual equipment, office automation, and communication devices.
The note lists absolute maximum ratings, recommended operating conditions, detailed DC and switching characteristics, and ordering details. Key parameters include a 3 V‑16 V supply range, high input impedance, and typical propagation delays around 40 ns. Ordering information specifies tape‑and‑reel packaging for the SSOP5 form factor.
| Supply voltage range (VDD) | 3 V to 16 V |
|---|---|
| Input high voltage (VIH) | 7.0 V |
| Output high voltage (VOH) | 9.95 V |
| Static supply current (IDD) | 0.5 µA |
| Propagation delay (tPHL) | 40 ns |
The device operates from 3 V to 16 V supply voltage.
The maximum junction temperature is 150 °C.
It is supplied in an SSOP5 surface‑mount package.
The recommended operating temperature is –40 °C to 85 °C.
