The Q3500 Series logic arrays from AMCC offer high‑speed ECL and TTL compatible functionality in three density options (1300, 2400, 3500 equivalent gates). Each device provides a high I/O‑to‑gate ratio, with up to 120 I/O pins, and flexible performance macros that can be tuned for speed or low power.

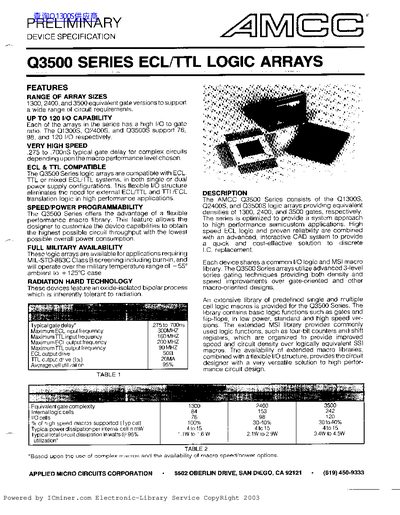

The datasheet details electrical characteristics, macro performance options, packaging configurations, and recommended operating conditions, including military‑grade temperature ranges and voltage specifications. Design support tools such as the MacroMatrix CAD suite are also described.
| Typical gate delay | .275 to .700 ns |
|---|---|
| Maximum ECL input frequency | 300 MHz |
| Maximum TTL input frequency | 160 MHz |
| ECL output drive | 500 µA |
| TTL output drive (low) | 20 mA |
| Average cell utilization | 95 % |
| I/O capability | Up to 120 I/O (76/98/120 per device) |
| Operating temperature (military) | -55 °C to +125 °C |
| Package pin count | 92‑pad, 126‑pad, 148‑pad |
| Macro gate delay options | 350 ps (HS), 500 ps (Std), 700 ps (LP) |
The devices are qualified for military use from –55 °C ambient up to +125 °C case temperature.
Packaging options include 92‑pad (Q1300S), 126‑pad (Q2400S), and 148‑pad (Q3500S) configurations.
Three macro options are offered: high‑speed (350 ps gate delay), standard (500 ps), and low‑power (700 ps).
