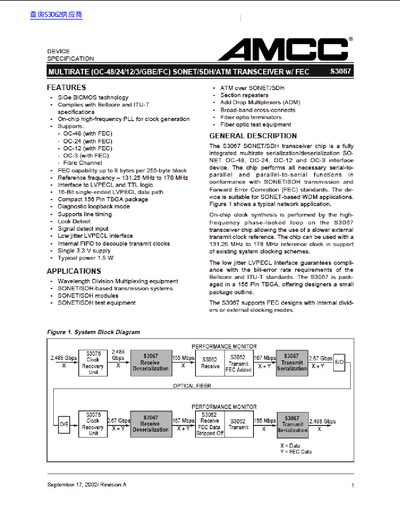

The S3067 is a multirate (OC-48/24/12/3/GBE/FC) SONET/SDH/ATM transceiver with FEC function.
The AMCC S3067 is a fully integrated multirate serialization/deserialization device designed for SONET/SDH and WDM applications. It supports transmission rates from OC-3 to OC-48, as well as Fibre Channel (FC), utilizing SiGe BICMOS technology.
The chip features an on-chip high-frequency PLL for clock generation and includes Forward Error Correction (FEC) capability with up to 9 bytes per 255-byte block. It operates from a single 3.3 V supply with typical power consumption of 7.5 W and is packaged in a compact 155-pin TBGA.
| Technology | SiGe BICMOS technology |
|---|---|
| Supported Rates | OC-48/24/12/3, GBE, FC |
| FEC Capability | Up to 9 bytes per 255-byte block |
| Reference Frequency Range | 131.25 MHz to 173 MHz |
| Data Path Interface | 16-Bit single-ended LVPECL |
| Package Type | 155 Pin TBGA |
| Supply Voltage | Single 3.3 V supply |
| Typical Power Consumption | 7.5 W |
The device supports OC-48, OC-24, OC-12, OC-3 with FEC, as well as Fibre Channel.
The device has a typical power consumption of 7.5 W.
