The product PSD03 thru PSD24C is a standard TVS component with ESD, EFT, Surge protection, support Unidirectional and Bidirectional configurations, protect one power or I/O port, provide multiple voltages 3.0V to 24.0V, ESD protection > 40 kilovolts, low clamping voltage.

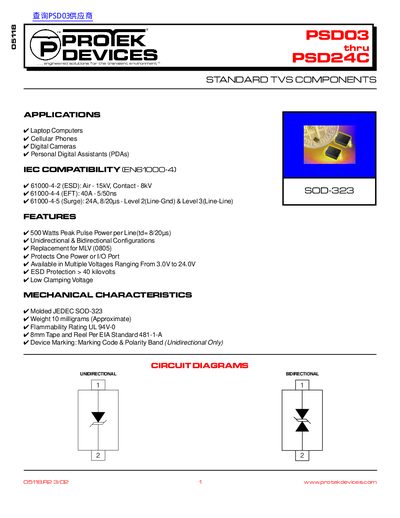

The PSD03‑PSD24C series from ProTek Devices are transient voltage suppressor (TVS) diodes designed for protection of laptops, cellular phones, digital cameras, and PDAs. The handbook lists IEC‑61000 compatibility, features such as 500 W peak pulse power, and both unidirectional and bidirectional configurations.
Key specifications include operating and storage temperature ranges of –55 °C to 150 °C, voltage options from 3 V to 24 V, a 10 mg weight, UL 94V‑0 flammability rating, and a molded JEDEC SOD‑323 package. Devices are supplied on 7‑inch tape‑and‑reel reels (3 000 pieces per reel) per EIA‑481 standards.
| Peak Pulse Power | 500 W per line |
|---|---|
| Voltage Range | 3.0 V to 24.0 V |
| Weight | 10 mg (approx.) |
| Flammability Rating | UL 94V‑0 |
| Package Type | JEDEC SOD‑323 |
| Tape & Reel Quantity | 7‑inch reel, 3 000 pieces per reel |
Each line can handle a peak pulse power of 500 W.
They are housed in a molded JEDEC SOD‑323 package.
They are supplied on 7‑inch tape‑and‑reel reels with 3 000 pieces per reel.
