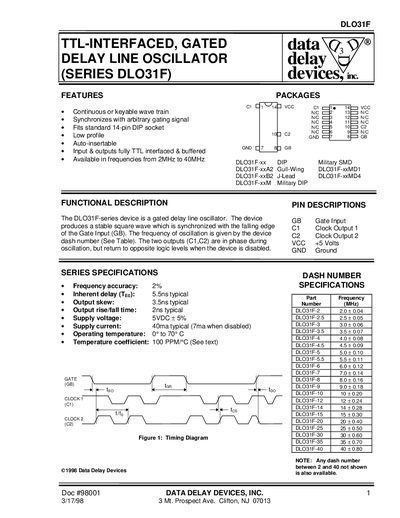

The DLO31F is a TTL-interfaced, gated delay line oscillator from Data Delay Devices, Inc. It features continuous or keyable wave train, synchronization with arbitrary gating signal, fitting standard 14-pin DIP socket, low profile, auto-insertable, fully TTL interfaced and buffered input & outputs, frequency range from 2MHz to 40MHz.
The Data Delay Devices DLO31F is a TTL-interfaced, gated delay line oscillator that produces a stable square wave synchronized with the falling edge of an arbitrary gating signal. The device fits in a standard 14-pin DIP socket and features auto-insertable pins with fully buffered inputs and outputs.
| Frequency Range | 2MHz to 40MHz |
|---|---|
| Supply Voltage | 5VDC + 5% |
| Operating Temperature | 0° to 70°C |
| Thermal Coefficient | 100 PPM/°C |
| Supply Current (Typical) | 40ma |
The inherent delay (Teo) is typically 5.5ns.
Yes, it fits a standard 14-pin DIP socket.
