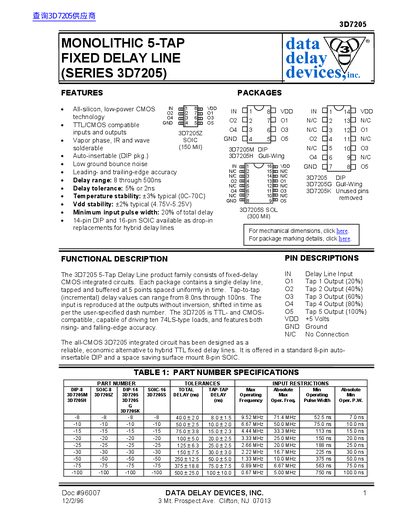

The document describes the features and characteristics of the 3D7205 Monolithic 5-Tap Fixed Delay Line.
The document describes the 3D7205 Series, an all-silicon, low-power CMOS integrated circuit designed as a reliable alternative to hybrid delay lines. It features five uniformly spaced taps and is available in DIP-8, SOIC-8, DIP-14, and SOIC-16 packages.
The datasheet provides detailed specifications including absolute maximum ratings, DC electrical characteristics, and part number definitions based on specific tolerances and operating frequencies. It also includes application notes regarding input signal requirements for frequency and pulse width to ensure accurate delay performance.
| Technology | All-silicon, low-power CMOS technology |
|---|---|
| Delay Range | 8 through 500ns |
| Taps | 5-Tap |
| Input Capacitance | 10 pf typical |
The delay tolerance is specified as 5% or 2ns.
Yes, it features TTL/CMOS compatible inputs and outputs.
The device is offered in 14-pin DIP, 16-pin SOIC, 8-pin DIP, and 8-pin SOIC packages.
