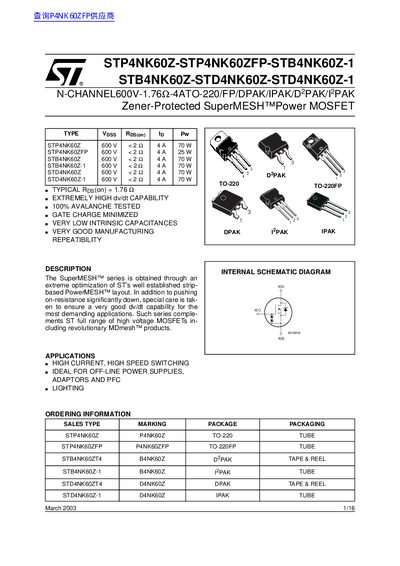

STP4NK60Z-STP4NK60ZFP-STB4NK60Z-1 N-CHANNEL 600V-1.76 Ω-4A TO-220/FP/DPAK/IPAK/D2PAK/I2PAK Zener-Protected SuperMESH™ Power MOSFET is a 600V low-resistance N-channel Power MOSFET produced by ST. It features a typical RDS(on) of 1.76 ohms, making it ideal for high-current, high-speed switching applications.
The STP4NK60Z family is a Zener‑protected SuperMESH™ power MOSFET series offering 600 V rating, low on‑resistance and high dv/dt capability. It is optimized for high‑current, high‑speed switching applications such as offline power supplies, adapters, PFC circuits and lighting.
The datasheet provides absolute maximum ratings, thermal data, avalanche specifications, gate‑source Zener protection details, and extensive electrical parameters for each device variant (STP4NK60Z, STP4NK60ZFP, STB4NK60Z, STB4NK60Z‑1, STD4NK60Z, STD4NK60Z‑1). Package options include TO‑220, DPAK, IPAK and D2PAK.
| Drain‑source voltage (VDS) | 600 V |
|---|
The MOSFETs are rated for a maximum drain‑source voltage of 600 V.
