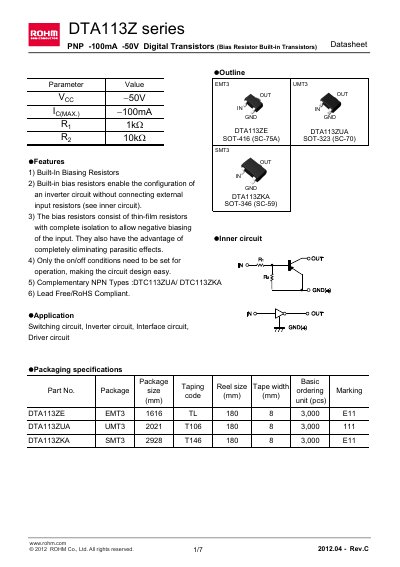

DTA113Z series is a PNP -100mA -50V digital transistor launched by ROHM with the feature of built-in bias resistors, which can realize an inverter circuit without connecting external input resistors (see inner circuit).
The DTA113Z series are PNP digital transistors with built‑in bias resistors, enabling simple inverter and switching circuits without external bias components. Features include thin‑film bias resistors with complete isolation, lead‑free/RoHS compliance, and complementary NPN types (DTC113ZUA/DTC113ZKA).\n\nThe datasheet contains absolute maximum ratings, detailed electrical characteristics, characteristic curves, package options (SOT‑346, SOT‑416, SOT‑323), dimension tables for each package, and a legal notice. It also lists typical applications such as switching, inverter, interface, and driver circuits.
| Supply voltage (Veo) | -50 V |
|---|---|
| Input voltage range (Vin) | -10 to +5 V |
| Maximum output current (Io) | -100 mA |
| Power dissipation (DTA113ZE) | 150 mW |
| Junction temperature (Tj) | 150 °C |
| Storage temperature range | -55 to +150 °C |
| Transition frequency | 250 MHz |
| Input resistance (Ry) | 0.7 – 1.3 kΩ |
| Package type | SOT‑346 (SC‑59) |
The maximum supply voltage (Veo) is –50 V.
The series is offered in SOT‑346 (SC‑59), SOT‑416 (SC‑75A) and SOT‑323 (SC‑70) packages.
Typical applications include switching circuits, inverter circuits, interface circuits, and driver circuits.
