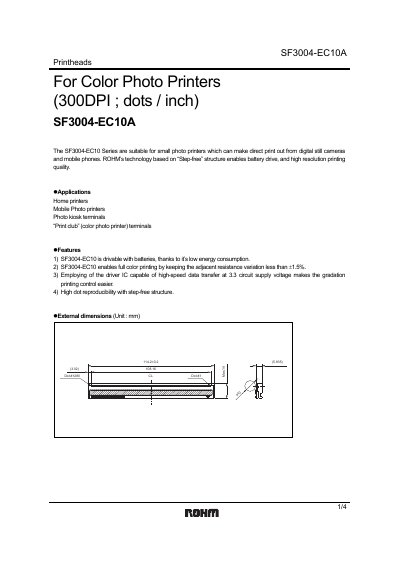

The SF3004-EC10 series print heads are suitable for small photo printers that can make direct print out from digital still cameras and mobile phones. ROHM's technology based on “Step-free” structure enables battery drive, and high resolution printing quality.
The SF3004-EC10A printhead is designed for small color photo printers, supporting direct printing from digital cameras and mobile phones. It uses ROHM's step‑free structure for low power consumption and high‑resolution output.
The document provides detailed electrical characteristics, pin assignments, equivalent circuit diagrams, and mechanical dimensions, along with application notes and usage warnings. This manual is written in Chinese.
