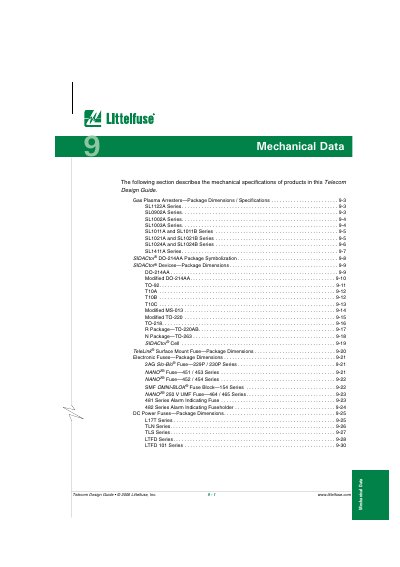

This chapter describes the mechanical specifications of products in the Telecom Design Guide.
This document provides the mechanical data for a range of Littelfuse components covered in the Telecom Design Guide. It includes package dimensions, weight, material composition, and packing options for each series.
The sections detail individual series such as SL1122A, SL0902A, SL1002A, and others, as well as generic package types like DO-214AA, Modified DO-214AA, and Modified TO-220 types. Packing options for tape‑and‑reel and bulk formats are also listed. This manual is written in Chinese.
| SL1122A device weight | 2.7 g (0.095 oz) |
|---|---|
| SL1122A body material | Ceramic |
| SL1122A electrode base material | Nickel iron alloy |
| SL1122A electrode plating material | Bright Sn |
| DO-214AA dimension A (min‑max) | 0.140–0.155 in (3.56–3.94 mm) |
It weighs 2.7 grams (0.095 ounces).
The body material is ceramic.
The A dimension ranges from 0.140 to 0.155 inches (3.56 to 3.94 mm).
It is made of nickel iron alloy.
