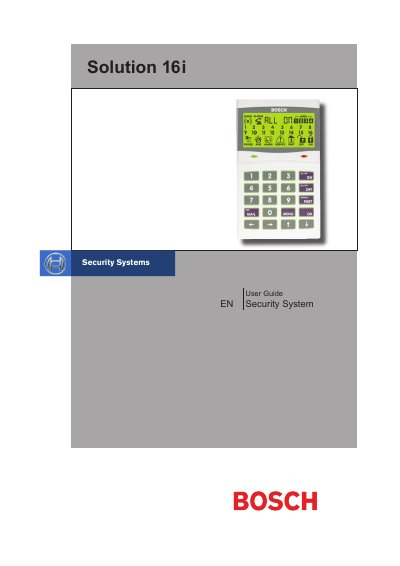

Solution 16i Security System User Guide, introducing the features and usage of the product
The Solution 16i control panel provides a flexible security system for homes and businesses. It includes up to 16 programmable zones, 48 user PINs, and multiple areas that can be armed individually or together. The keypad offers clear icons, tones, and emergency alarm triggers for fire, panic, and medical alerts.
The guide explains basic operation such as turning areas on/off, part‑arm modes, and how to program zones, schedules, and output devices. It also details keypad functions, status icons, and troubleshooting steps.
| Programmable Zones | Up to 16 |
|---|---|
| User PIN Numbers | Up to 48 unique PINs |
| Relay Outputs | Up to 4 (optional expander) |
| Open Collector Outputs | 4 |
| Programmable Schedules | 8 |
| Areas | Up to 4 (including a common area) |
| History Event Memory | 256 events |
| Keypad Units Supported | Up to 8 ICON keypads |
| Built‑In Dialler | Yes |
| EMI/Lightning Protection | Included |
The panel supports up to 16 fully programmable zones.
The system can store up to 48 unique user PIN numbers.
Yes, it can be configured for up to four separate areas.
