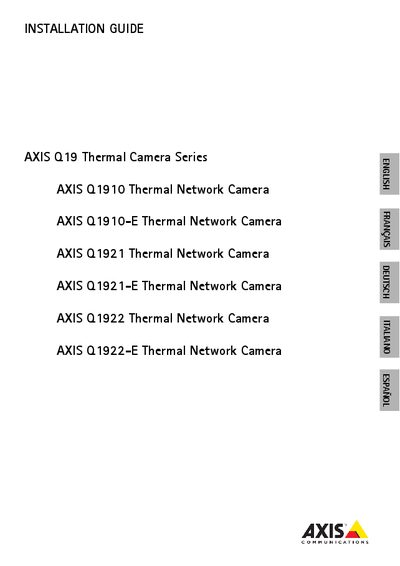

This is the installation guide for AXIS Q19 series thermal network cameras
This guide provides the necessary safety information and legal considerations for installing the Axis Q19 thermal camera series. It explains handling precautions, battery replacement, and regulatory compliance before any work begins.
The document walks through the installation steps, including checking package contents, hardware overview, mounting the camera, connecting power, network and RS‑485/422 cables, assigning an IP address, and configuring passwords. It also details connector types, PoE support, optional accessories, and where to obtain further technical support.
| Battery type | 3.0 V CR2032 Lithium |
|---|---|
| Network power | PoE class 3 |
| Frame rate (Q1910) | 8.3 fps |
| Frame rate (Q1921 / Q1922) | 8.3 fps / 30 fps |
| Safety compliance | EN/IEC 60950‑1 |
The camera uses a 3.0 V CR2032 Lithium battery for its internal real‑time clock.
Indoor cameras must be placed in an approved outdoor housing before being used outdoors.
A shielded network cable (STP) is required for outdoor or harsh environments.
Yes, the Ethernet connector supports PoE class 3.
