This document includes instructions for installing the AXIS M31-VE Network Cameras on your network. Previous experience of networking will be beneficial when installing the product. Video and audio surveillance can be prohibited by laws that vary from country to country. Check the laws in your local region before using this product for surveillance purposes. This product includes one (1) H.264 decoder license. To purchase further licenses, contact your reseller. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Re-orient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment to an outlet on a different circuit to the receiver. Consult your dealer

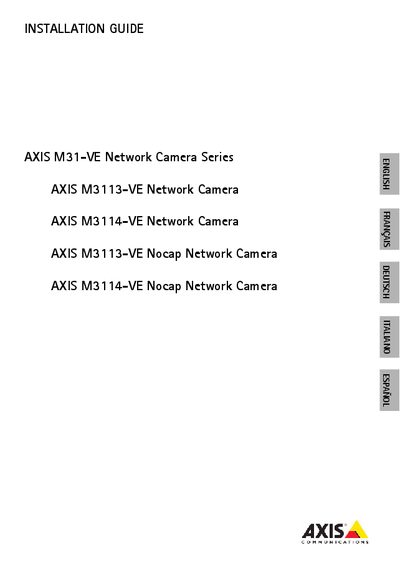

This guide provides step‑by‑step instructions for installing the Axis M31‑VE series network cameras, including the M3113‑VE, M3114‑VE and their Nocap variants. It covers unpacking, hardware mounting, cable routing, and initial network configuration such as assigning an IP address and setting a password.
The document also includes legal considerations, electromagnetic compatibility (EMC) information, environmental disposal guidelines (RoHS and WEEE), and safety precautions. LED indicator meanings, connector details, and recommended tools are described to help users achieve a reliable installation.
| Network connector | Male RJ‑45 Ethernet (10BaseT/100BaseTX) with PoE support |
|---|---|
| LED indicator – Network | Green steady for 100 Mbit/s, Amber steady for 10 Mbit/s, flashes for activity |
| LED indicator – Power | Green normal operation, Amber during firmware upgrade |
| Mounting screw torque | < 2.5 Nm |
The camera uses a male RJ‑45 Ethernet connector that supports 10BaseT/100BaseTX and Power over Ethernet.
Green steady means a 100 Mbit/s connection, Amber steady means a 10 Mbit/s connection, and flashing indicates network activity.
Yes, video and audio surveillance may be prohibited or restricted by local laws, so users should check regulations in their region before use.
