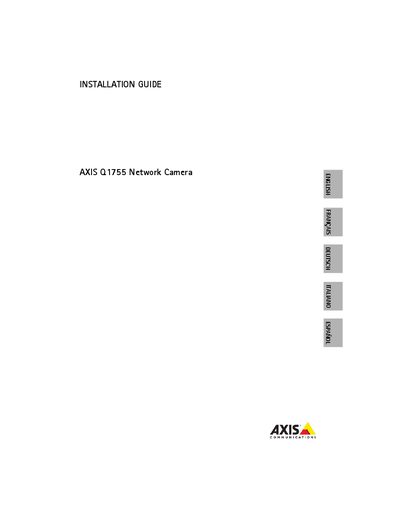

Axis Q1755 Network Camera Installation Guide

This document includes instructions for installing the AXIS Q1755 Network Camera on your network.

Brand: AXIS
Category: Other device
Document type: Installation Guide
Language: English
Pages: 74
File format: PDF
File size: 1.4 MB
Published: 11 May, 2012
Updated: 30 September, 2023
Model: Q1755
MD5 checksum: 1B7DABB1D46F0A66AC05381605315D87
PDF: Axis Q1755 Network Camera Installation Guide PDF

About this manual

This guide walks you through installing the Axis Q1755 network camera. It covers checking package contents, mounting the camera, connecting power (PoE or external adapter), wiring network and video cables, and configuring the device on your network.

Legal and safety information is included, such as compliance with local surveillance laws, EMC requirements, and detailed instructions for safely replacing the internal CR2032 battery that powers the camera’s real‑time clock.

What's inside

About this Document
Legal Considerations
Package Contents
Hardware Overview
Install the Hardware
Connect the Cables
Assign an IP Address
IP Utility and Camera Management
Battery Replacement
Safety Notices

Specifications

Battery	3.0 V CR2032 Lithium
Network Interface	Standard Ethernet RJ45 connector
LED Indicators	Power indicator LED, Network indicator LED, Status LED

Frequently asked questions

What battery does the Axis Q1755 use?

It uses a 3.0 V CR2032 lithium battery to power the internal real‑time clock.

Can the camera be powered by Power over Ethernet?

Yes, the camera supports PoE Class 3, which is detected automatically when a shielded Ethernet cable is connected.

Download PDF (1.4 MB)
