SLD105VL is a GaAlAs laser diode from Sony that is designed for CD. This product has low current consumption and a small package size, making it suitable for portable CD pickup applications.
The SLD105VL is a low‑current‑consumption GaAlAs laser diode designed for portable CD pickup applications. It features a small 5.6 mm package and includes a pin photodiode for optical power monitoring.

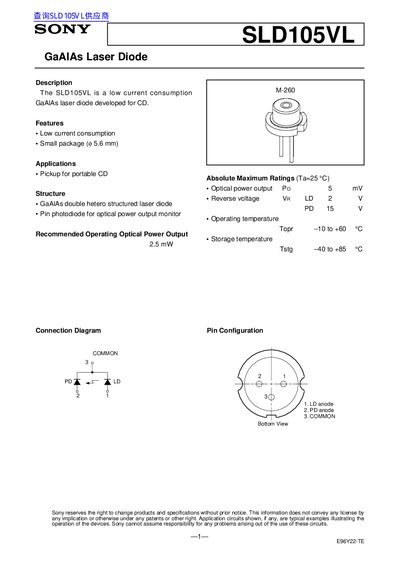

The datasheet lists absolute maximum ratings, pin configuration, and detailed optical/electrical parameters such as threshold current, operating voltage, wavelength range, differential efficiency, and temperature‑dependent performance curves.
| Recommended operating optical power output | 2.5 mW |
|---|---|
| Threshold current (Ith) | 30 mA |
| Operating current (Iop) for 2.5 mW output | 35‑44 mA |
| Operating voltage (Vop) for 2.5 mW output | 1.7‑2.5 V |
| Package size | 5.6 mm (small package) |
| Reverse voltage (VR LD) | 2 V |
| Storage temperature range | -40 °C to +85 °C |
The recommended operating optical power output is 2.5 mW.
The threshold current (Ith) is 30 mA.
The typical operating voltage is between 1.7 V and 1.9 V (maximum 2.5 V).
It uses a small 5.6 mm package.
