Polycom V700 is a video conferencing terminal launched by Polycom company, supporting H.261, H.263++, H.264, People+Content / H.239 and other coding and decoding formats. The maximum video resolution is 4CIF (704 x 576), and it supports stereo microphones, a 17-inch LCD display, stereo speakers and a fixed camera.

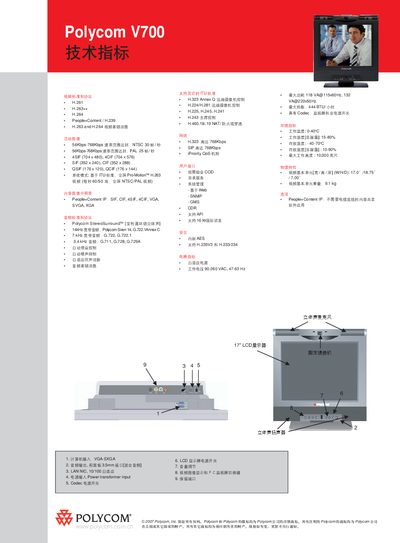

The manual details the video capabilities of the Polycom V700, including supported codecs (H.261, H.263++, H.264, H.239) and resolution options such as SIF, CIF, QSIF, QCIF, 4SIF, 4CIF, VGA, SVGA and XGA. It also outlines audio standards, network bandwidth limits for H.323 and SIP, and various user‑interface functions like web‑based system management and API support.
Electrical and environmental specifications are provided, covering a wide input voltage range (90‑260 VAC, 47‑63 Hz), maximum power consumption (118 VA @115 V, 132 VA @220 V), operating temperature (0‑40 °C), humidity, altitude limits, and physical dimensions of the 17‑inch LCD unit. This manual is written in Chinese.
| Supported video resolutions | SIF, CIF, QSIF, QCIF, 4SIF (704×480), 4CIF (704×576), VGA, SVGA, XGA |
|---|---|
| Video bitrate range | 56 Kbps – 768 Kbps |
| Input voltage | 90‑260 VAC, 47‑63 Hz |
| Maximum power consumption | 118 VA @115 V, 132 VA @220 V |
| Operating temperature | 0 °C – 40 °C |
| Operating humidity (non‑condensing) | 15 % – 80 % |
| Maximum altitude | 10,000 ft |
| Unit weight | 9.1 kg |
| LCD display size | 17 inches |
It supports SIF, CIF, QSIF, QCIF, 4SIF (704×480), 4CIF (704×576), VGA, SVGA and XGA resolutions.
The unit operates on 90‑260 VAC at 47‑63 Hz.
The device can operate from 0 °C up to 40 °C.
Supported audio codecs include G.711, G.728, G.729A, G.722, G.722.1, and Polycom StereoSurroundTw.
