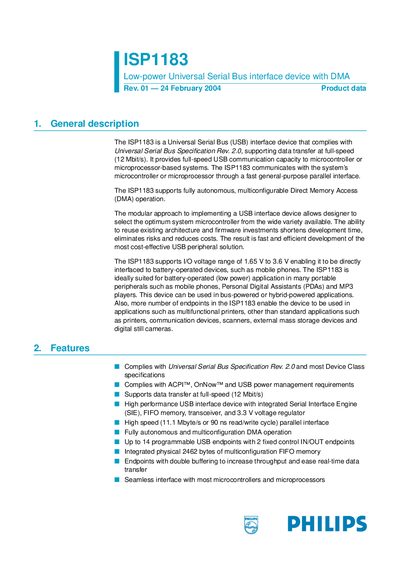

ISP1183 is a low-power Universal Serial Bus interface device with DMA. It complies with Universal Serial Bus Specification Rev. 2.0, supporting full-speed data transfer (12 Mbit/s). It provides full-speed USB communication capacity to microcontroller or microprocessor-based systems.
The Philips ISP1183 is a low‑power USB 2.0 full‑speed (12 Mbit/s) interface device designed for battery‑operated applications such as mobile phones, PDAs and MP3 players. It connects to a microcontroller or microprocessor via a fast parallel interface and includes an autonomous, multiconfigurable DMA engine.
The device offers up to 14 programmable USB endpoints, 2462 bytes of internal FIFO memory, an integrated 6 MHz crystal oscillator with PLL, and a 3.3 V regulator. It is supplied in an HVQFN32 lead‑free, halogen‑free package and operates over a wide voltage range (1.65 V–3.6 V I/O, 4.0 V–5.5 V core).
| USB data transfer speed | 12 Mbit/s (full‑speed) |
|---|---|
| Parallel interface speed | 11.1 Mbyte/s |
| I/O voltage range | 1.65 V to 3.6 V |
| Core supply voltage range | 4.0 V to 5.5 V |
| Number of programmable USB endpoints | up to 14 |
| Integrated crystal oscillator | 6 MHz with PLL |
| Operating temperature range | −40 °C to +85 °C |
| Package type | HVQFN32 (lead‑free, halogen‑free) |
The I/O pins accept 1.65 V to 3.6 V, while the core can be powered from 4.0 V to 5.5 V (or 3.0 V to 3.6 V with the internal regulator disabled).
The device is supplied in an HVQFN32 lead‑free, halogen‑free package.
