This product is an AC/DC power module, with protection class II, UL 508 listing, comply with international safety standards, suitable for many space critical applications in commercial and industrial electronic equipment.

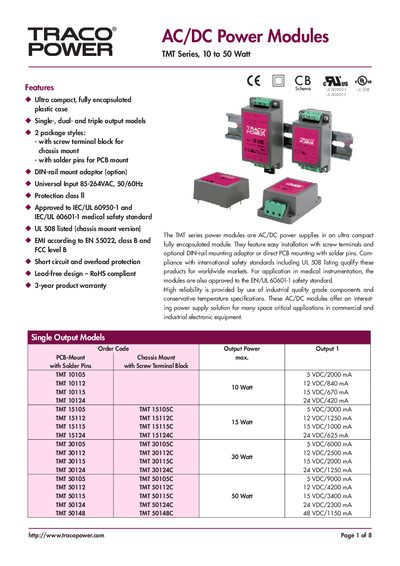

The TMT Series AC/DC power modules are ultra‑compact, fully encapsulated supplies ranging from 10 W to 50 W. They offer single, dual, and triple output versions, with options for screw‑terminal chassis mounting, PCB solder pins, or DIN‑rail adapters. The modules meet IEC/UL 60950‑1, IEC/UL 60601‑1 medical safety, and UL 508 approvals, and comply with EMI standards EN 55022 and FCC B.
Technical data includes input voltage 85‑264 VAC (or 85‑370 VDC), input frequency 47‑63 Hz, efficiency up to 83 % typical, and isolation voltage of 4000 VAC. Detailed dimensions, weight, and pin‑out information are provided for each model, along with recommended fusing and overload protection details.
| Input frequency | 47‑63 Hz |
|---|---|
| Efficiency | 83 % typical |
| Operating temperature range | -25 °C to +60 °C |
| Isolation voltage | 4000 VAC |
| Weight (TMT 10 model) | 52 g (1.8 oz) |
They are approved to IEC/UL 60950‑1, IEC/UL 60601‑1, UL 508, and UL 60950‑1 listings.
Models are available from 10 W up to 50 W.
The isolation voltage is 4000 VAC.
